Product Introduction

     Tapes shaker motor soft start by connecting with the coupling wheel drive belt using, eccentric middle gimbal drive, starting safety, sieve using strong bolted in the high-frequency vibration to avoid weld cracking. Uses a combination of excitement block eccentric, exciting and strong, easy to adjust.

     Widely used in transportation, mining, metallurgy, water and other materials screening industry.

Works

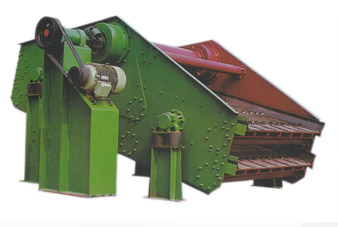

     YZS series circular vibrating screen directly driven by the motor through the coupling groups on both sides of the sieve shaker operation, ranging from two centrifugal rotary shaker for synchronization in the middle of the universal joint couplings join under sieve under the joint action of the spring vibration exciter and support groups by nearly circular track to achieve full amplitude vibration, the material constantly flip jump forward role in exciting the projectile force, less than the material falling into the lower mesh sieve, sieve followed step by step points, sieve the finished material from the feed hopper then pick out.
